Board Type:Termination Board
Model:IS200TREGH1B
Manufactured By:General Electric
Series Compatibility:Mark VI
Material:Rugged, high-temperature resistant materials
Operating Temperature Range:-40°C to +85°C
Dimensions (WxHxD):203.2mm x 101.6mm x 48.26mm
Weight:Approx. 0.7kg
Connector Ports:Various, for secure connections to system components
Power Consumption:Low-profile, efficient power usage
Certifications:ISO 9001, CE, UL

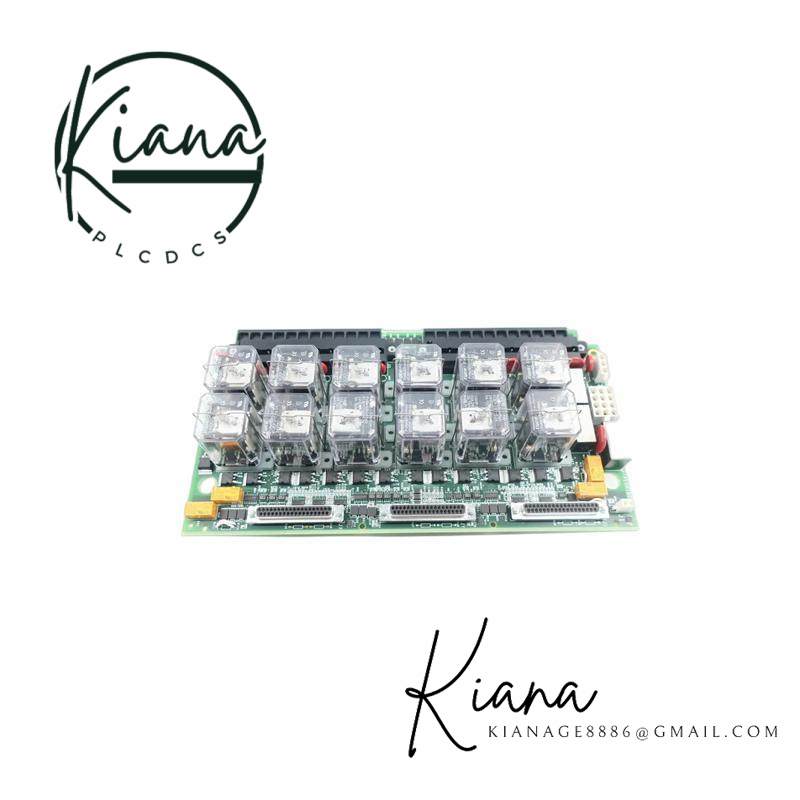

The GE IS200TREGH1B is engineered to deliver exceptional reliability and performance in critical turbine control applications. This advanced termination board is meticulously designed to meet the stringent requirements of the Mark VI series, ensuring seamless integration and optimal system functionality.
Key features include a robust design with integrated transformer components, offering enhanced electrical stability and durability. The use of transparent plastic covers and silver wiring ensures not only aesthetic appeal but also protection against environmental factors, enhancing the lifespan of the product.
Located along the right border of the board, a series of jack connector ports facilitate easy connection to various components, streamlining the setup process and minimizing downtime. Each port features a collection of small pin ports, providing secure and efficient signal transmission.
For added versatility, the board incorporates three black variable resistors or potentiometers, enabling precise adjustment of resistance values to suit specific operational needs. This feature is crucial for fine-tuning system responses and enhancing overall system efficiency.
Four large capacitors, shaped like rectangles and colored solid yellow, are strategically placed on the right side of the board. These capacitors come in pairs, positioned at both the upper and lower right corners, providing critical energy storage capabilities essential for maintaining system stability under varying conditions.
