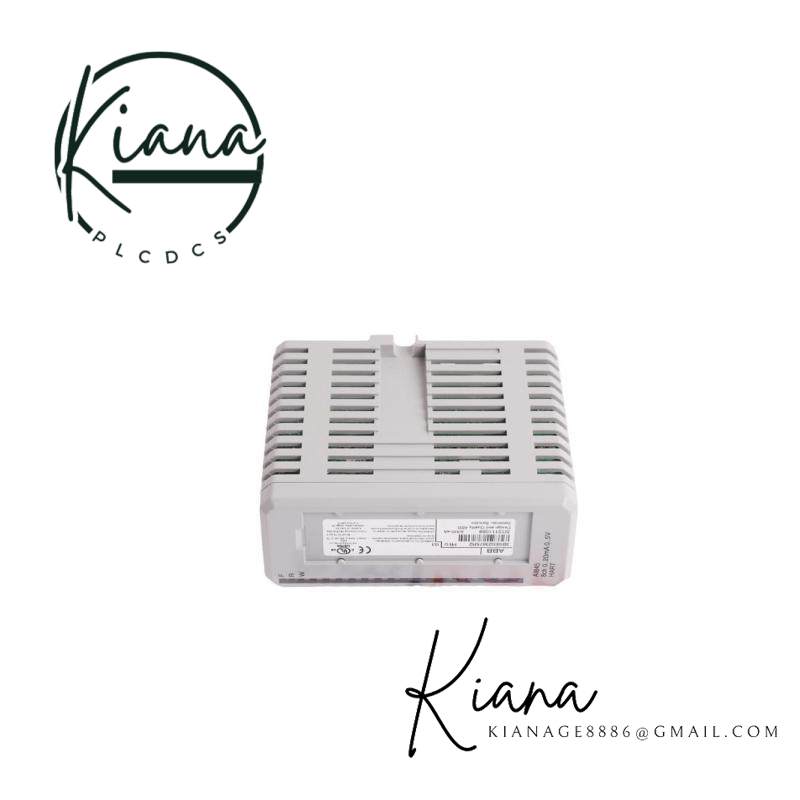

ABB AI845-EA 3BSE023675R2 Analog Input Module – High-precision Analog Signal Acquisition for Industrial Automation

Brand:ABB

Model:AI845-EA

Sub-model:3BSE023675R2

Module Type:Analog Input Module

Channels:8

Analog Input Range:0-20mA or 0-10V

Resolution:12-bit

Input Power:DC 24V

Operating Temperature:-25°C to +70°C

Environmental Protection:IP20

Dimensions:110mm x 51mm x 80mm

Weight:0.15kg

    Engineered for precision and reliability, the ABB AI845-EA 3BSE023675R2 Analog Input Module is an essential component for modern industrial automation systems. It offers seamless integration and enhanced system performance, ensuring accurate data acquisition across a wide range of applications.

    With its versatile input range from 0-20mA, 4-20mA, 0-10V, and 0-100mV, this module caters to diverse industrial requirements, enabling it to adapt to various process conditions. Its high sampling rate of up to 100kHz ensures quick response times, crucial for real-time monitoring and control.

    Efficiency is maximized through its low power consumption of less than 1W, making it suitable for energy-conscious operations. Designed to withstand challenging environments, it operates within an extensive temperature range of -25°C to +85°C, ensuring reliability in harsh industrial settings.

    The module’s IP20 enclosure rating provides protection against dust and light splashes, safeguarding against common industrial contaminants. Terminal block connections facilitate easy installation and maintenance, minimizing downtime and enhancing operational efficiency.

    Compatibility with popular communication protocols like Modbus, DeviceNet, and CANopen ensures seamless integration with existing control systems, reducing complexity and setup time. This feature-rich module is the perfect solution for optimizing industrial automation processes.
